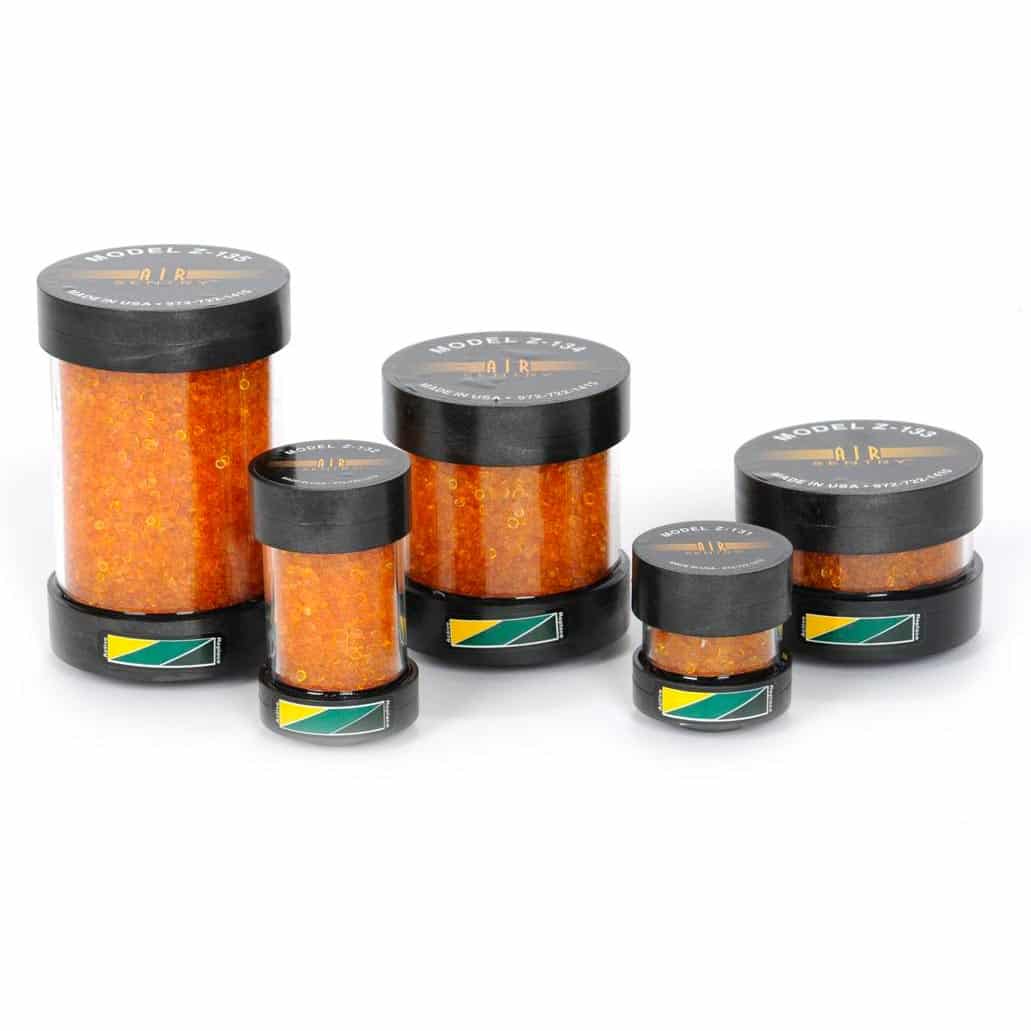

Z-Series Dessicant Breathers (Air Sentry) Contamination Control
Description
Z-Series breathers are designed for applications where space is limited or air flow requirements are lower than 5 cfm. The Z-Series is typically used on gearboxes and low fluid volume applications where mounting space is limited or where a larger breather will not fit without remote mounting.
All Z-Series models feature two 2 micron filters, one on the inlet and a second on
the outlet.
Operating Temperature: -20°F (-29°C) to +200F (+93°C)
Limited Space Applications – Gearboxes • Drums • Totes • Small Oil Containers
Specifications
| Base Material | 100% Silica Gel |
Additional Information
| Model | Height | Diameter | Mounting Connection | Silica Gel | Maximum Adsorption Capacity | Maximum Air Flow | Maximum Reservoir Fluid Flow | Type of Medium |
|---|---|---|---|---|---|---|---|---|
| Z-131 | 2 in 5.1 cm | 2 in 5.1 cm | 1/2″ FNPT | 0.08 lbs 0.04 kg | 0.49 fl oz 14 mL | 5 cfm | 37 gpm | 100% Silica Gel |
| Z-132 | 3.25 in 8.3 cm | 2 in 5.1 cm | 1/2″ FNPT | 0.1 lbs 0.05 kg | 0.92 fl oz 27 mL | 5 cfm | 37 gpm | 100% Silica Gel |
| Z-133 | 2 in 5.1 cm | 3.25 in 8.3 cm | 1/2″ FNPT | 0.3 lbs 0.1 kg | 1.84 fl oz 54 mL | 5 cfm | 37 gpm | 100% Silica Gel |
| Z-134 | 3.25 in 8.3 cm | 3.25 in 8.3 cm | 1/2″ FNPT | 0.5 lbs 0.2 kg | 3.06 fl oz 90 mL | 5 cfm | 37 gpm | 100% Silica Gel |
| Z-135 | 5.5 in 14.0 cm | 3.25 in 8.3 cm | 1/2″ FNPT | 0.8 lbs 0.4 kg | 4.91 fl oz 145 mL | 5 cfm | 37 gpm | 100% Silica Gel |
* Note: Models with other media are available.
Resources
Filter Documents by Language:
Common Uses for Z-Series
Industries
- Automotive
- Food & Beverage
- Mining
- Oil & Gas
- Power Generation
- Pulp & Paper
Applications
- Conveyors
- Lube Rooms / Maintenance
Equipment
- Gearboxes
- Hydraulic Reservoirs
