Filtration Units - Portable & Stationary Contamination Control - Filtration
Description
OilSafe’s ground-breaking Filtration Units extend the life of your industrial oils, saving you time and money. They maintain purity from storage to application and eliminate cross-contamination with color-coded/error-proof, flat face, zero-leak quick connects. The cleanest and safest filtration systems on the market with three layers of spill containment to include a removable primary containment vessel, preventing spills and waste.
Performance:
OilSafe’s Filtration Units include a 1200RPM electric motor/pump to reduce oil shearing and electrostatic charges frequent in 1800RPM motor/pumps. Filters that are beta 2000 (99.95% efficient) with medium pressure, compared to low pressure types which can flex, distort and collapse. These filters have two seals which protect the filter ID and OD to reduce oil bypassing the filter element. They do not leak unfiltered oil across a bypass valve in the filter head, 100% of all oil passes through the filter media. All of these unique features equate to better particulate removal.
Safety:
Hands down, OilSafe Filtration Units lead industry with three layers of spill containment; a full front panel, lower secondary containment and a removable filter element containment for cleaner & safer element changes. The Pro Units include 24VDC controls, electrical overload protection and
zero-leak quick connects.
OilSafe offers PRO & BASIC performance to meet your equipment and budget needs.
_______________________________________________________
PRO

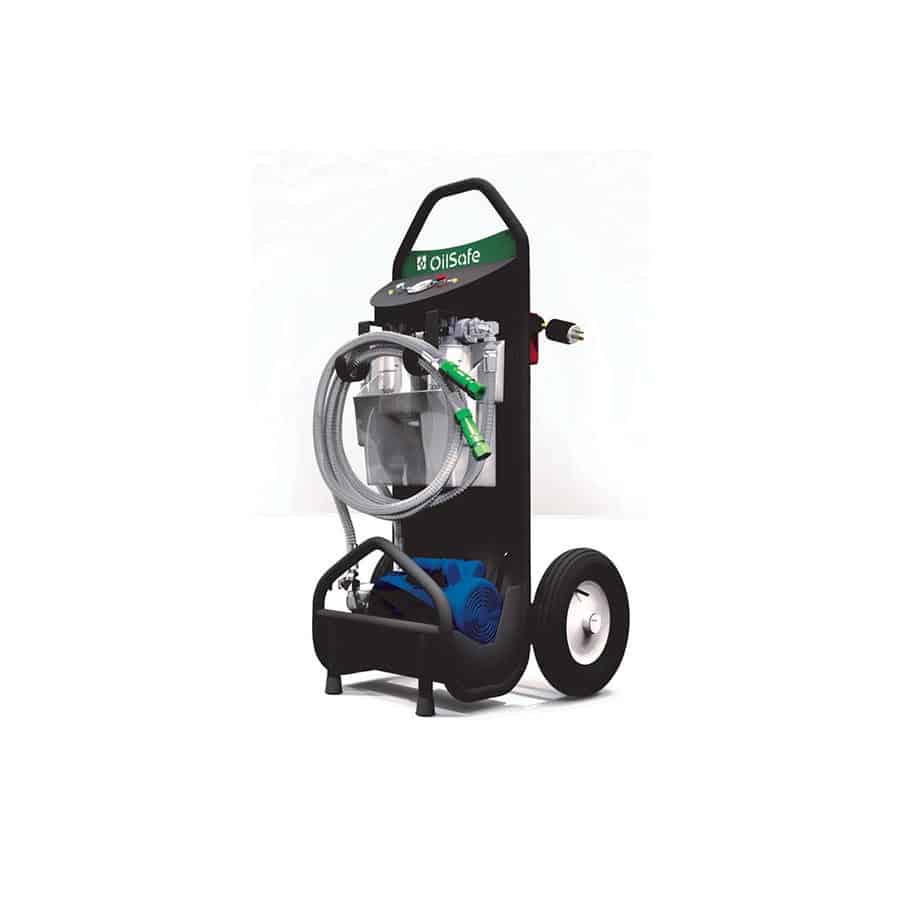

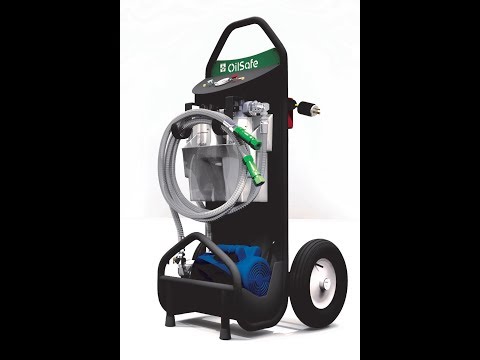

High-end filter cart manufactured onto a special frame, with 3-layers of spill containment for plants requiring less spills and oils messes from their equipment. Includes all the standard Performance,
Error-Proofing, and Safety features. Available with electric driven gear pump.
- 957780-PRO
Portable-2 Filter-Electric
with upstream and downstream
sample ports. - 957700-PRO
Wall Mount Stationary-2 Filter-Electric
with upstream and downstream
sample ports.
BASIC
All the standard Safety, Error-Proofing and Performance features. Available with electric driven gear pump or air-powered pneumatic pump.
- 957750-NF1
Portable-1 Filter-Electric or Air
with downstream sample ports. - 957750-NF2
Portable-2 Filter-Electric or Air
with downstream sample ports.
957770-Basic
Wall Mount Stationary-2 Filter-Electric
with upstream and downstream
sample ports.
Additional Information
PART #
- 957700 – PRO
- 957700 – BASIC
- 957780 – PRO
- 957780 – BASIC
Resources
Filter Documents by Language:
- Filtration Units Brochure
- ÉLIMINEZ LA CONTAMINATION CROISÉE GRÂCE À UNE NORME DE SÉCURITÉ ÉLEVÉE
- BESEITIGEN KREUZKONTAMINATION MIT EINEM HOHEN SICHERHEITSSTANDARD
- ELIMINA LA CONTAMINAZIONE CROCIATA CON UN ELEVATO STANDARD DI SICUREZZA
- ELIMINE A CONTAMINAÇÃO CRUZADA COM UM ALTO PADRÃO DE SEGURANÇA
- ELIMINE LA CONTAMINACIÓN CRUZADA CON UN ALTO ESTÁNDAR DE SEGURIDAD
Common Uses for Filtration Units – Portable & Stationary
Industries
- Agriculture
- Automotive
- Cement
- Food & Beverage
- Marine
- Mining
- Oil & Gas
- Power Generation
- Pulp & Paper
- Rail
- Steel
Applications
- Lube Rooms / Maintenance
